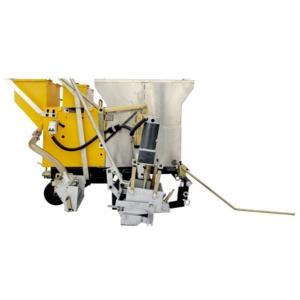

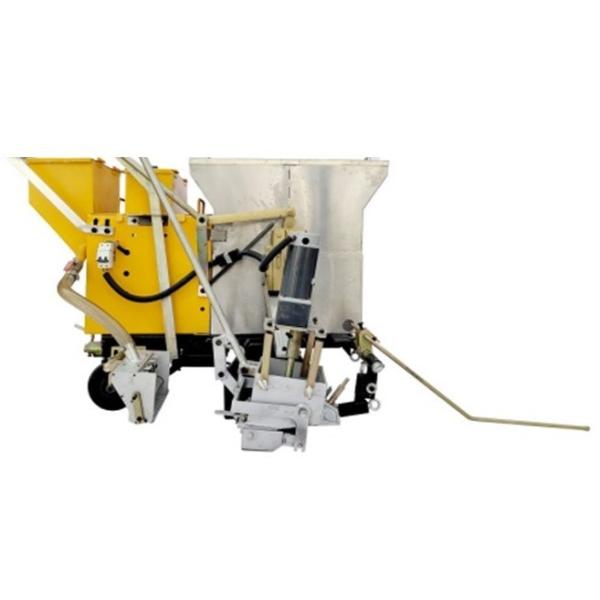

Scraping two compoent road marking machine
Scraping two compoent road marking machine
2024 New version
OLD version
General information:
two-component marking series is divided into spraying and scraping two construction processes, two coatings with the aid of two pumps or two paint barrels after mixing chemical reaction to form marking. Compared with the hot melt marking, the two-component marking construction has the advantages of environmental protection, high wear resistance, good reflectivity, long service life and easy construction.
HG-20MM-II is to put two kinds of coatings in the same barrel separated. After discharging the coatings from the tank, the coatings are fully stirred by an electric stirring shaft. After mixing in the crossing hopper, the chemical reaction is carried out. Finally, the marking is done through the crossing hopper. Compared with spraying two-component marking, scraping marking has the advantages of thicker marking thickness, longer wear resistance, better reflectivity and more uniform mixing.
Parameter:
| | HG-15GT |
| Marking mode | Double compartment scraping |
| Agitation speed | 650r/min |
| Glass Micro sphere cylinder capacity | 25kg |
| Spraying system | Self dropping |
| Paint cylinder capacity | 60L/ tank x 2个cylinder |
| Marking thickness | 1.2-2.5mm adjustment within ranges |
| Standard thickness | 150mm |
| Width optional | 100/200/300/400/450mm(scoops replacement) |
| Size (L*W*h) | 1200*900*1100mm |
| Weight | 162kg |
Construction:
Contact:
Rita QU
Xi'an Wage Traffic Infrastructure Installation Co.,LTD Add:Room 401, Unit 2, Bilding 2, Shenglong Plaza, Weiyang Road, Xi'an, 710016, Shaanxi, China
Product Tags:
|
|
2 Components Road Line Striping Marking Machine Screeding Version Images
|
