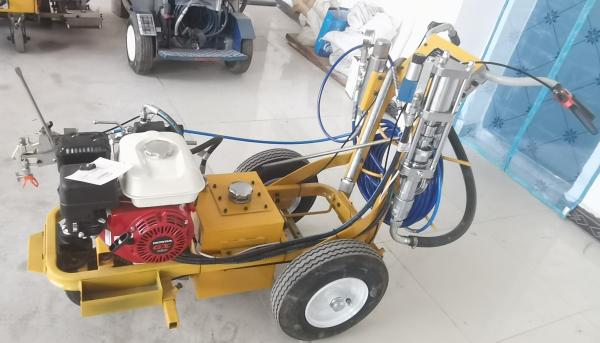

Airless Spraying Road Line Striping Marking Machine Single Gun
Airless spraying road line striping marking machine single gun
1. Honda engine is used to ensure strong horsepower.
2. The front wheel positioning system and the vacuum pneumatic tire used in the rear wheel have good shock absorption effect, which can greatly reduce the line deformation caused by road surface fluctuation, and ensure that the marking edges and angles are neat.
3. The spray gun bracket can be adjusted in all directions to ensure the accuracy and convenience of line width.
Working Principle
Using gasoline engine to drive hydraulic plunger pump to form high pressure paint in the pump. The pressurized paint is transported to the airless gun through high pressure hose. Finally, the hydraulic pressure is released at the airless nozzle. After instantaneous atomization, the paint is sprayed to the ground to form a marking film layer. Normal temperature marking machine is usually suitable for the construction of underground parking spaces, plot plant area marking, a small number of pavement roads and other kinds of temperature marking.
Parameter:
| | HG-6L | HG-12L |
| power | 5.5HP gasoline | 6.5HP gasoline |
| Core pump | WAGE hydraulic piston pump | Precision Hydraulic Piston Pump |
| Marking mode | High pressure airless spraying | High pressure airless spraying |
| Working pressure | 8-14Mpa | 21Mpa MAX |
| Flow max | 6L/min | 12L/min |
| Spraying width | 100-300mm(single gun) | 50-500mm(DOUBLE GUNS) |
| Spraying thickness | 0.2-0.4mm | 0.2-0.4mm |
| Size (L*W*H) | 1750*680*950mm | 1700*750*1100mm |
| Weight | 128kg | 110kg |
Working:
Application:
WAGE company has strong ability of research, manufacturing and innovation, which is the backbone of the enterprise Chinese road marking machine industry. The company products are mainly divided into two parts of road marking equipment and road marking material.Road marking equipment including hand push thermoplastic road marking machine, cold spray road marking machine, double component road marking machine, auxiliary machine and other series. Meanwhile agents of the United States well-known brands: Graco road marking machine. In order to develop new products, improve equipment performance, our company made a full research and experiment on the new road marking materials, currently has a number of projects put into use and received more recognition. The company's products covered all areas of road marking construction, with a strong set of equipment supply and service capabilities.
